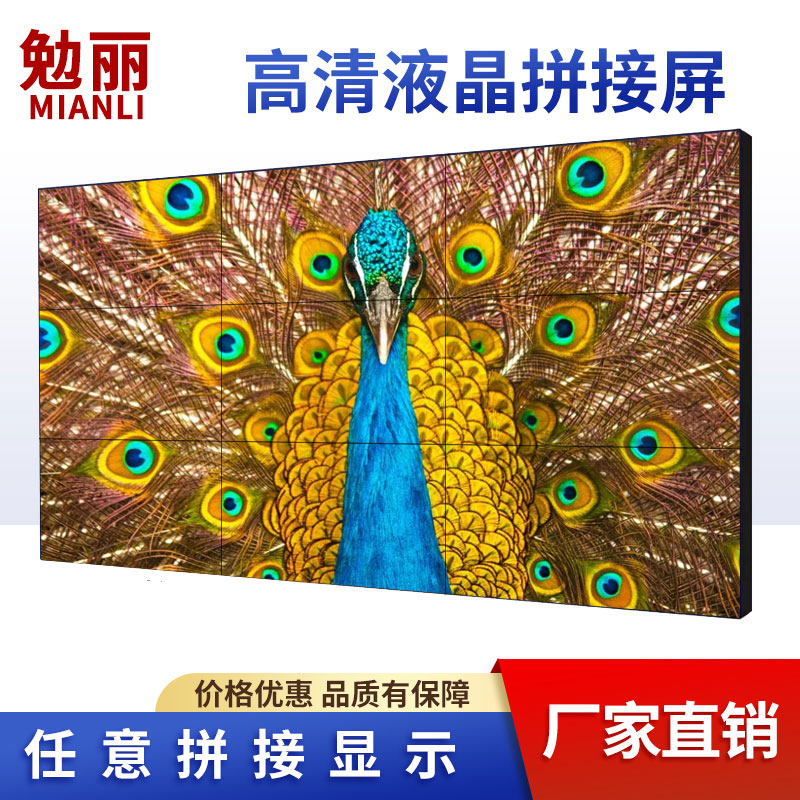

ML-653PJ (Samsung 65 inch 3.5mm700 brightness)
ZGS splicing system ML-653PJ (liquid crystal splicing unit) technical parameters
product features Industrial-grade design, 50,000 hours of uninterrupted work, stable performance
, high-resolution, high contrast, ultra-wide viewing angle, ultra
-narrow edge design, only 3.5mm bilateral seams
Built-in splicing controller can realize image splicing display function
Adopt 3D digital image processing core , Accurately monitor more detailed
image signal gain function, more stable and correct image control, realize real image restoration, improve system reliability,
complete signal interface, support CVBS (BNC), HDMI, VGA, DVI input
Support computer centralized control Adjust the parameters of the splicing unit through the computer.
Automatic intelligent temperature control system, energy saving and environmental protection, so that the splicing unit has higher stability and reliability
. All-metal shell, anti-static, anti-magnetic field, anti-strong electric field
interference can realize quick splicing and installation
Detailed technical parameters
LCD panel model 65” DID LCD Panel (LTI650FN01)
physical resolution 3840×2160(H×V)
pixel pitch 0.372×0.372 (mm)
brightness 500 (cd/m )
Contrast 4000:1
Response time 8ms
display color 16.7M
perspective 178°(H) / 178°(V)
image screen ratio 16:9
Image quality compensation technology LTI, CTI
motion compensation technology AUTO MOVE
filter 3D comb filtering, digital noise reduction
Video format PAL, NTSC
signal source Composite video input CVBS(BNC) ×1;
digital signal input DP × 1; 3840x2160
digital signal input HDMI×1; 3840x2160
computer signal input VGA(DB-15) ×1; 1920x1080@60Hz backward compatible
digital signal input DVI(DVI-I)×1; 1080P(1920×1080) backward compatible
Built-in splice controller Computer centralized control interface RS232
Features Signal arbitrary combination splicing display, whole screen splicing display, single-screen independent display, partial splicing display, one-way signal arbitrary window roaming, zooming, border blanking
system Automatic temperature control system Automatically control the operation of the fan, reduce noise, save energy, and improve the stability and reliability of the LCD splicing unit according to the set working temperature and actual machine temperature
Image signal gain More stable and accurate image control to achieve true image restoration and improve system reliability
Operation method Computer centralized control
bus control IC
Mean Time Between Failure (MTBF) 50000 hours
power supply Wide voltage design 100~240V
Power consumption 300W
structure Dimensions 1432.58mm*807.62mm*125mm (W×H×D)
Display area size 1430.72mm×805.76mm (W×H)
Shell material All metal shell, anti-static, anti-magnetic field, anti-strong electric field interference
Installation method Standard cabinets, custom cabinets
environment storage temperature -20℃~65℃
Operating temperature 0℃~55℃
Working humidity 10%~90%
quality Quality Assurance Product compulsory certification (3C) standard production, ISO9001 system architecture process,
Environmental standards All components and packaging accessories comply with international environmental protection standards
